Mechelonic Engineers' flash butt welding machines are built to provide reliable and consistent welds for various applications in the automotive, aerospace, and manufacturing industries. These machines offer advanced features such as programmable parameters, multiple welding schedules, and real-time monitoring to ensure precise and controlled welding processes. The flash butt welding machines provide a unique welding solution for many industrial applications, including the production of railway tracks, shipbuilding, and pipeline welding.

Mechelonic Engineers' flash butt welding machines are designed to be user-friendly and easy to maintain, with a modular design that makes maintenance and repairs straightforward and cost-effective. The machines also offer energy efficiency, reducing energy consumption and carbon footprint, aligning with sustainability objectives.

Overall, Mechelonic Engineers' flash butt welding machines provide an effective solution for industries requiring reliable and high-quality welding. With their advanced features, commitment to excellence, and durability, these machines offer a cost-effective solution that meets the highest standards of quality and consistency.

These machines are robust in construction and are precision-built for long trouble-free service. Each machine is submitted to rigorous proving tests before delivery, so that the machine is ready for immediate installation and operation at the customer's works.

The Know-How that enables MECHELONIC ENGINEERS to offer these machines is backed by many years of experience in Welding Technology.

These Flash Butt Welders are specially designed for heavy duty applications where repeatability in performance is very important. Tooling and clamping devices are available for adapting these machines for the manufacture of railway shackles, automotive parts, starter ring-gears, wheel rims, link chains, etc.

For accurate and consistent weld results fully solid-state electronic controls are provided. Semi-automatic and fully automatic modes of operations are possible. Machine incorporating PLC and SERVO System are also available on request.

These machines conform to the latest National / International Standards.

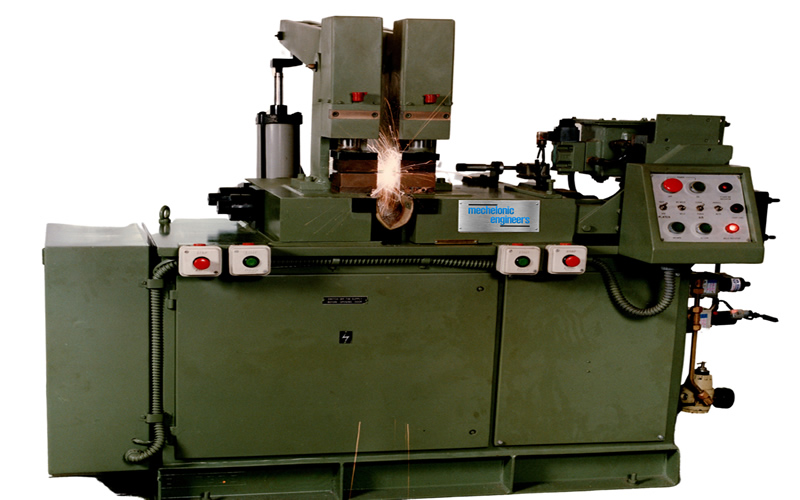

Specifications: Standard Ratings: 150, 200, 250 KVA (Higher capacities available on request). Type of Machine FH - Series: Automatic and semi-automatic high-speed flash Butt Welding Machine with hydraulically operated clamping and upsetting mechanism.

Construction: Main frame assembly is of sturdy, all-welded steel plate fabrication suitably braced and stiffened at points of stress to minimise deflection and thermally stress-relieved; the transformer placed separately from the main frame and connected through flexible connectors. Left hand platen is fixed and right-hand platen is movable and guided on precision - hardened and ground slides with provision for wear adjustment.

Welding Transformer: Transformer is of special type conforming to IS: 4804 Part I - 1968 and TWMA Standards. Water cooled, having core of high grade electrical steel, primary and secondary coils of solid electrolytic copper of ample section, heavy duty class 'F' insulated and encapsulated and suitable for withstanding severe loading conditions. Thermostatic protection has been provided against overheating of the transformer. In case of overheating, the control circuit opens, thereby preventing its operation till normal condition is attained.

Current Control By Transformer Taps: Transformer primary coil provided with taps brought out to tap changing links for adjustment of welding current in 4 steps from 50% to 100%. Tap change links are enclosed behind the machine panel.

Cooling System: Transformer, secondary bus bars and electrodes and thyristors are water-cooled. Internal water-cooling piping is provided in the machine. All circuits terminate into a single outlet.

Water Flow Switch: (Optional accessory at extra cost). Water Flow Switch shall be provided with machine to ensure adequate flow of water while operating the machine. When sufficient flow of water is not provided the control circuit trips off and machine stops. Visual indication shall also be provided to indicate inadequate flow of water.

Clamping & Tooling: Clamping pressure applied by individual hydraulic cylinder through either alligator-type lever operated clamps or vertical clamp slides depending on job configuration.

Upper and lower tooling fitted with one set of replaceable electrodes / dies to suit particular geometry of the components.

Pre-Heat, Flashing & Upsetting: A movement of right-hand platen is effected by a direct acting hydraulic cylinder. Provision is made for automatic pre-heating of the work pieces prior to the commencement of the flashing operation. The retractable cylinder facilitates only a small stroke of the cylinder to be operational during this period. The ON and OFF timing periods of pre-heating are separately controlled by precision electronic timer having a range of 2-250 cycles continuously adjustable. The numbers of pre-heat cycles are selected from 0-99 impulses in steps of one impulse. Flashing parameters such as the initial speed, rate of acceleration and final speed are under the control of a flow control valve. This valve determines the initial speed of flashing and acceleration and final speed achieved by the moving platen at the pre-set distance. Upsetting is achieved by bypassing the flow control valve and dumping the oil suddenly. Upsetting pressure can be varied by means of pressure regulating valve. Cutting off the current just after the application of the upset force is controlled by precision electronic timer. Welding current interrupted automatically after pre-adjusted interval starting from the moment of upsetting by an Electronic timer unit adjustable to suit any welding requirement.

Post-Heat(Optional at extra cost): A post-heat timer and a programmable 6-second downslope control of absolute accuracy enabling excellent post-weld heat treatment to the weld heat treatment to the weld joint can be provided at extra cost.

Contractor: Heavy-duty Thyristor Contractor incorporated in the primary circuit for on/off switching of the set. Main power contractor is chosen as per the requirement of the welding machine. Two high Power thyristors on a water-cooled heat sink are connected in anti-parallel. The gates of the thyristors are connected to the firing circuit, which triggers the firing signals to the thyristors. The thyristors are protected from voltage and current surges by conservative designs. A thermo switch mounted on the water-cooled heat sink offers additional safety to the Thyristors.

Servo Control(Optional at extra cost): Control functions such as Pre-heat, Flashing, Upsetting and Post Heat, which are done with Non-synchronous timers and relay logic is replaced with a compact PLC with appropriate programming. The right hand side platen movement is controlled by means of a Servo Valve having position feed back (with the help of Linear Transducer) and current feedback for proper flashing and upsetting. Pressure feed back is also applied to the Servo system during pre-heating for fast and controlled heating. Flashing parameters such as initial speed, rate of acceleration, flashing speed, etc. are controlled with the help of servo valve to get optimum results.

Hydraulic Power Pack: The hydraulic power pack is an integral unit, consisting of a tank, strainer, pumping unit, heat exchanger and the group of valves and devices as per the circuit of the system arranged for easy servicing. Only the hoses are to be connected to the bulk heads provided for starting up the hydraulic system. It is powered by a 3-Phase Induction Motor.

Service Requirements

Supply Voltage: 415 Volts, Single Phase, 50 Hz. (2 lines of 3-phase supply) for transformer. 415 Volts, 3-Phase. 50 cycles, for hydraulic power pack as given in technical specification.

Main Supply Disconnect Switch: To be provided by customer. 2-Pole, Isolating Switch Unit (rating as recommended). And 3-Pole, Isolating Switch Unit (rating as recommended). Mains Supply Cable: To be provided by customer, 2-Core, copper/aluminium conductor (rating as recommended). And 3-Core, Copper / aluminium conductor (rating as recommended).

Water: Customer to provide water supply of recommended flow rate, free from residue forming impurities and at a temperature less than 30oC.

Model FH-150 FH-250
Rating KVA @ 50% duty cycle 150 250
Continuous duty (KVA) 100 175
Max. demand (KVA) 350 770
Short circuit secondary current (±10%) (Amps) 35000 55000
Max. upsetting force (Kgs) 8000 12000
Max. clamping force (Kgs) 12000 18000
Welding Capabity (mm sq.)
MS Unalloyed steel @ 5kg/mm sq.
Alloyed steel @ 8 kg/mm sq.

1600
1000

2400
1500

SPECIAL PURPOSE FLASH BUTT WELDING MACHINE FOR BOILER TUBES

Mechelonic Engineers' make Special Purpose Flash Butt Welder is hydraulically operated, fully tropicalised, and specially designed for heavy duty applications where repeatability in performance is important. Tooling and clamping devices are available for adapting these machines for the welding of boiler tubes with provision for purging to minimise internal upset material. The machine is provided with a powered manual adjustment facility for proper alignment of the fixed and moving tubes before welding. For accurate and consistent weld results, fully solid-state electronic controls are provided. All electrical controls are housed in a separate control cubicle with required protection. The machine operation does not require any skilled labour. Apart from the loading of the job, the machine is completely automatic. The machine comprises of hydraulically operated weld clamps. The welding transformers and the secondary system are designed to ensure high efficiency. The welding parameters are easily settable through a user friendly interface to the control system. Quality is assured with a PC based welding monitor unit.The machine is configured to facilitate convenient maintainability of all elements and accessories and at the same time being rigid.

TECHNICAL DATA
Machine KVA 350KVA
Tube Diameter 30 to 65
Tube wall thickness 2 to 10 mm
Upsetting Force 12 Tons
Clamping Force 18 Tons
Platen Stroke 100 mm
Weldability MS 180 to 2200 mm2
Material Steel & Alloy Steel
